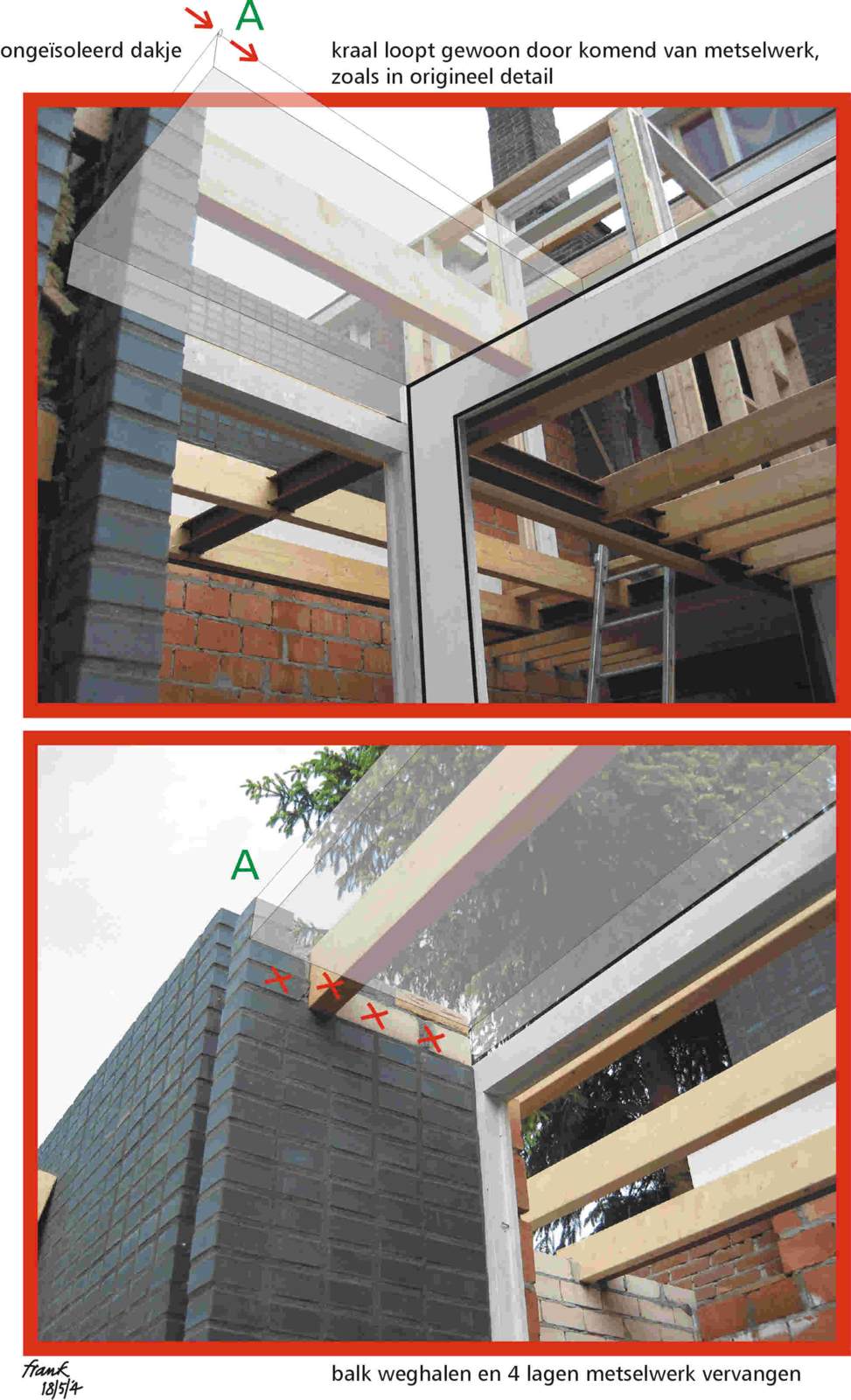

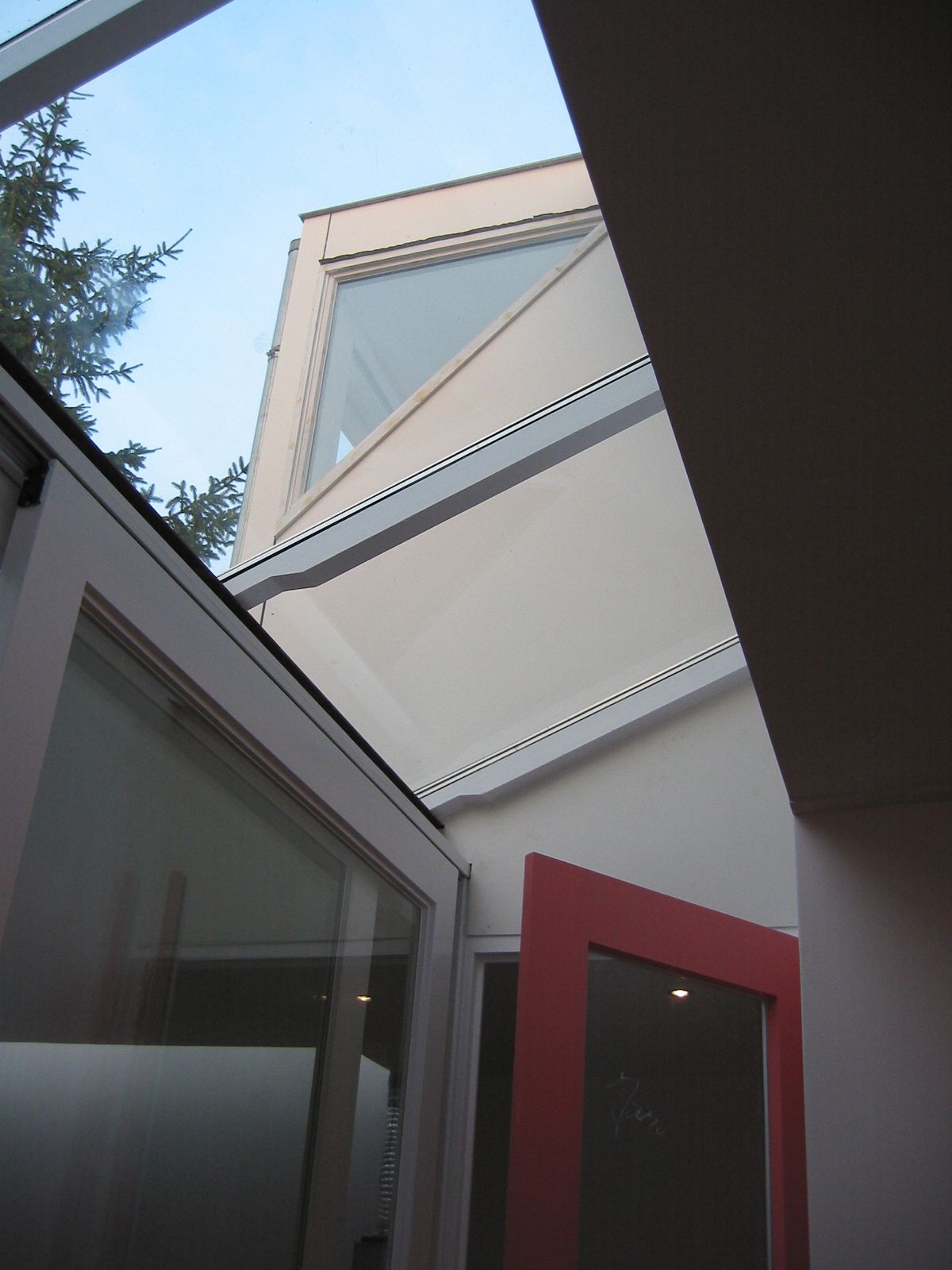

(top, left) There were many problems to be solved in this particular key-region, but the built solutions will never tire the user, and, as the designer, scarcely remind me. Note the just visible simple iron beam.

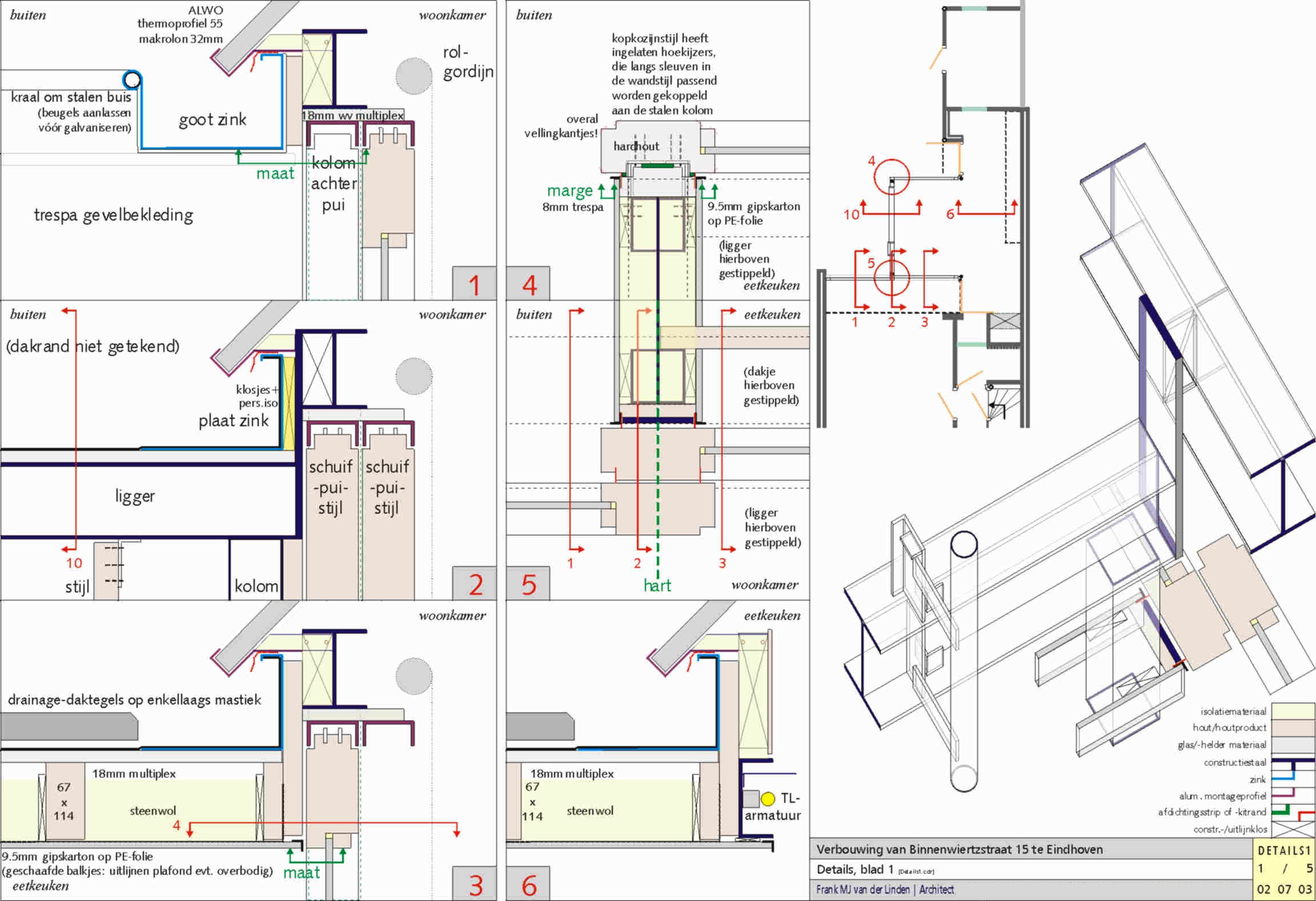

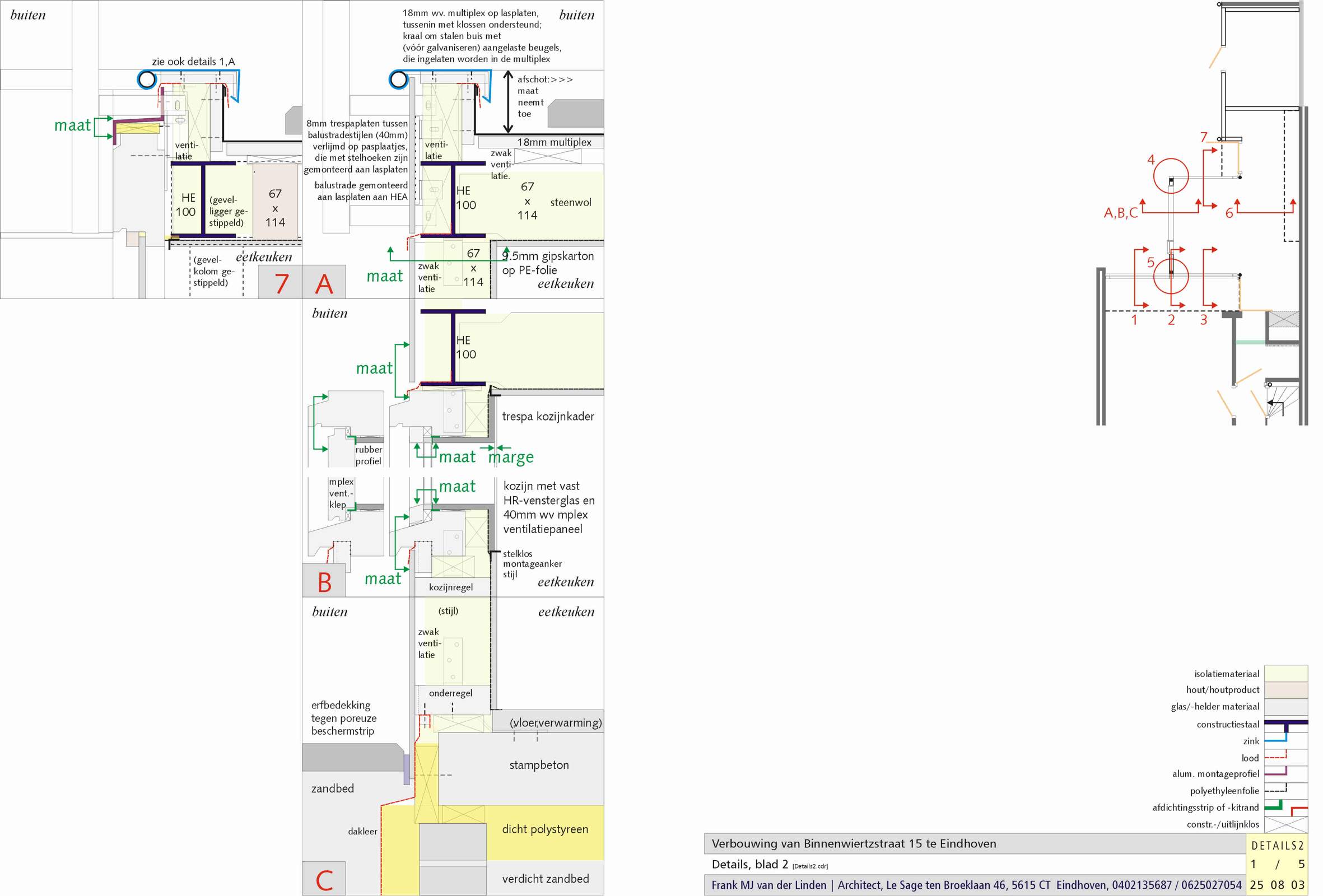

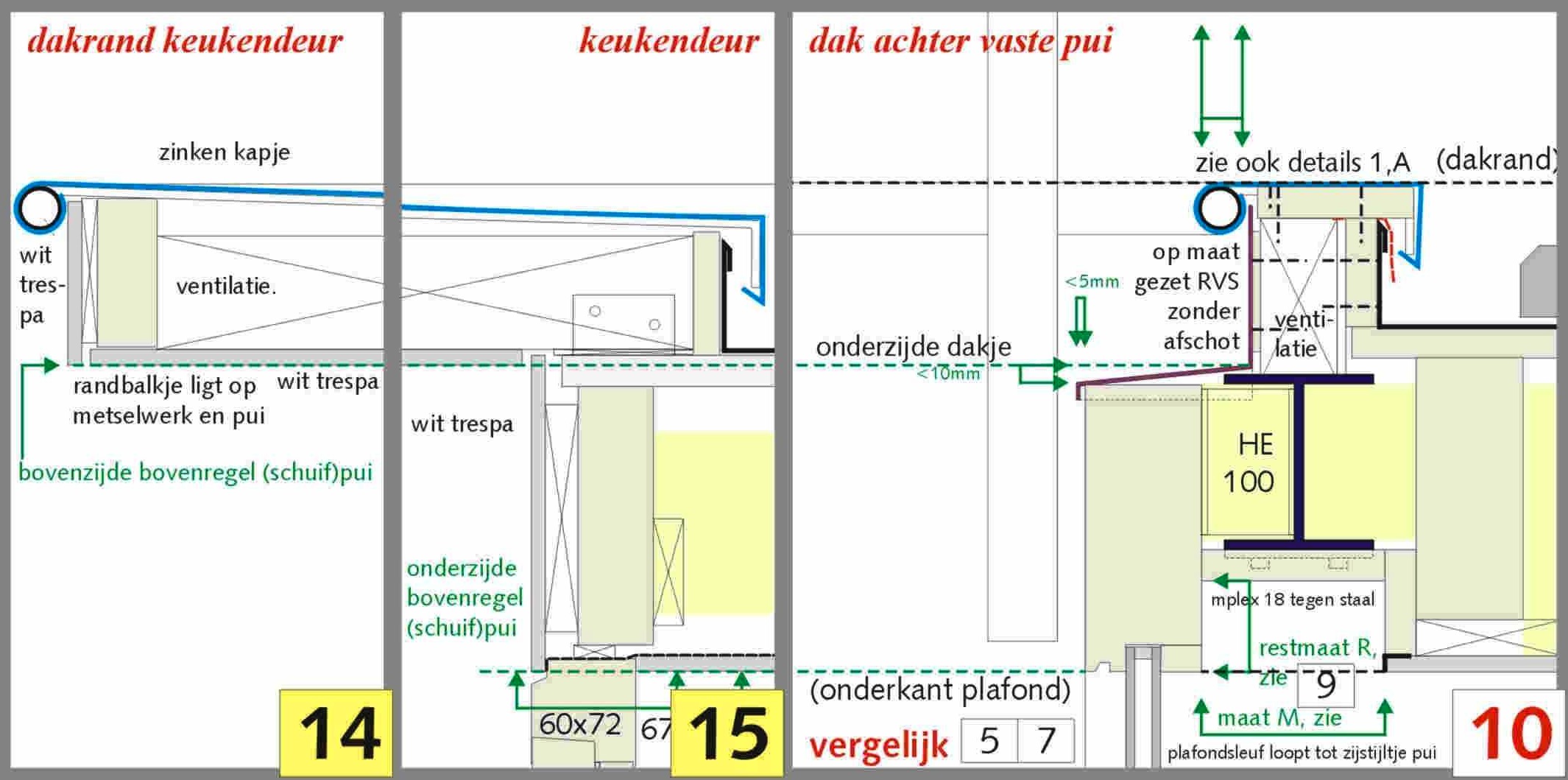

(bottom) In the cross sections of these (during development, but even during the work in progress!) interacting junction details, it is shown how two horizontal planes cut through the whole building extension.
